Storage Solution: Longhorn

In this article you will learn everything about the Longhorn storage solution.

Intro

Longhorn, developed by Rancher/SUSE, is a straightforward distributed storage system designed specifically for Kubernetes. It simplifies storage management within Kubernetes clusters, significantly easing the operational workload for users. Find out more here: Longhorn

Prerequisists

Cluster Ressources

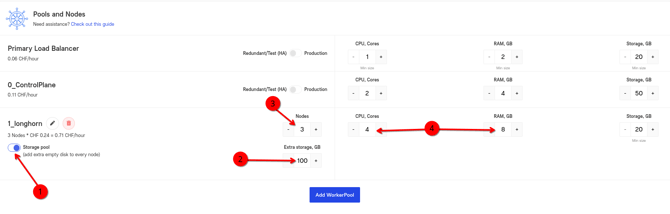

To optimize your Xelon Kubernetes cluster for Longhorn, we recommend the following adjustments:

1. Enable the "Storage Pool" option: In Xelon HQ, activate the "Storage Pool" option to attach an additional disk to each node. This disk will be used by Longhorn to store data separately from the main boot disk. The Talos Linux boot partition is immutable and will be overwritten during any base system upgrade unless the --preserve flag is used. However, additional disks are not wiped, making it advisable to use a secondary disk for storage.

2. Ensure Adequate Storage Pool Size: Your storage pool should consist of at least three nodes, as the default replication policy in Longhorn is set to three replicas. We do not recommend reducing the replication factor below this level.

3. Allocate Sufficient Resources: While Longhorn is lightweight, it still requires adequate resources. We recommend a minimum of 4 vCPUs and 8 GB of RAM for your storage nodes.

Mounting additional disk

To enable Longhorn to use the additional storage disk on your nodes, you need to manually mount the disk within the kubelet. This is not done by default. Follow these steps to mount the disk:

1. Create a patch file:

   Create a patch file named longhorn.patch.yaml with the following content:

   machine:
     kubelet:
       extraMounts:
         - destination: /var/mnt/sdb
           type: bind
           source: /var/mnt/sdb
           options:
             - bind
             - rshared
             - rw

   This configuration binds the additional storage disk to the specified directory (/var/mnt/sdb).

2. Apply the patch to all storage nodes:
   Use the talosctl command to apply this patch to all your storage nodes. Replace the IP addresses with those of your storage nodes:

   talosctl patch machineconfig --patch-file longhorn.patch.yaml -n 100.110.255.21,100.110.255.22,100.110.255.23

3. Locate the IPs of the storage nodes:

   kubectl get nodes -o wide

   This will display detailed information about your nodes, including their IP addresses, which you can use in the talosctl command

System extensions

Longhorn, like many distributed storage systems, relies on tools such as iSCSI and other Linux shell utilities (e.g. fstrim). However, this assumption about the host operating system is not always accurate for container-optimized OSes like Talos Linux.

To overcome this challenge, Talos Linux uses system extensions (also referred to as layers). These extensions add the required functionality to the host operating system, allowing Talos Linux to support the tools needed by Longhorn and similar storage systems.

Installing system extensions

To install the system extensions on a node, use the talosctl upgrade command with the required image and schematic ID. Here's how you can do it:

1. Obtain the Schematic ID:

   • Visit the Talos Image Factory: Image Factory

   • Configure the following settings:

     • Hardware Type: Cloud Server

     • Talos Linux Version: For example v1.7.5 (You can verify your version in the HQ Cluster Dashboard or by running kubectl get nodes -o wide)

     • Cloud Vendor: VMWare

     • System Extensions:

       • siderolabs/iscsi-tools

       • siderolabs/util-linux-tools

   • Skip modifying the kernel arguments and proceed to the next step.

   • You will be provided with a schematic ID, for example: 613e1592b2da41ae5e265e8789429f22e121aab91cb4deb6bc3c0b6262961245.

2. Install the Schematic ID on the Node:

   • Run the following command to upgrade your node with the system extensions:

     talosctl upgrade --image factory.talos.dev/installer/<schematic ID>:<TalosOS Version>-m powercycle -n <NodeIP>

This process will apply the necessary system extensions to your Talos Linux nodes, enabling them to support the tools required by Longhorn and similar distributed storage systems.

Ensure that the new image is installed on all nodes that either host or attach to Longhorn storage volumes. This is essential for maintaining compatibility and functionality across your storage nodes.

Namespace

We recommend installing Longhorn in a dedicated namespace. Additionally, due to pod security requirements, you need to set a label on the namespace to allow the execution of containers with privileged access. You can accomplish this with the following commands:

kubectl create namespace longhorn-system
kubectl label namespace longhorn-system pod-security.kubernetes.io/enforce=privileged

These commands create the longhorn-system namespace and label it to permit the execution of privileged containers, which is necessary for Longhorn to function properly.

Nodes

For more control over where Longhorn storage engines are set up, you can configure Longhorn to only use nodes with a specific label. During installation, set the option to limit Longhorn to nodes labeled with "node.longhorn.io/create-default-disk=true".

You can apply this label to a node with the following command:

kubectl label node cluster01-w-1-1 node.longhorn.io/create-default-disk=true

Replace cluster01-w-1-1 with the name of the node you wish to label. This ensures that Longhorn will only configure storage engines on nodes that have this specific label.

Longhorn Installation

To install Longhorn using the official Helm chart with custom values, follow these steps:

1. Create a Custom Values File:

   Save the following configuration in a file named custom-helm.values:

   defaultSettings:
     createDefaultDiskLabeledNodes: true
     defaultDataPath: /var/mnt/sdb/
     storageReservedPercentageForDefaultDisk: 0

   • createDefaultDiskLabeledNodes: Ensures that storage engines are only scheduled on nodes with the label node.longhorn.io/create-default-disk=true.

   • defaultDataPath: Sets the default directory for Longhorn data on the node's disk.

   • storageReservedPercentageForDefaultDisk: Sets the percentage of disk storage reserved for the host operating system. Since you're using a separate disk, this is set to 0 to use the entire disk.

2. Install or Upgrade Longhorn Using Helm:

   Run the following Helm command to install or upgrade Longhorn with the custom values:

   helm upgrade --values=doc-helm.values --install longhorn longhorn/longhorn --namespace longhorn-system --create-namespace --version 1.7.0

   This command will:

   • --values=custom-helm.values: Apply your custom configuration.

   • --install: Install Longhorn if it is not already installed.

   • --upgrade: Upgrade Longhorn if it is already installed.

   • --namespace longhorn-system: Deploy Longhorn in the longhorn-system namespace.

   • --create-namespace: Create the namespace if it does not already exist.

   • --version 1.7.0: Use the specified version of Longhorn.

This approach ensures that Longhorn is configured according to your requirements and deployed effectively in your Kubernetes cluster.

Verify Installation

To verify your Longhorn installation, you can check the Longhorn dashboard. Here's how to access it from your local machine:

1. Forward the Service Port:

   Use kubectl port-forward to forward the Longhorn front-end service to a local port:

   kubectl port-forward svc/longhorn-frontend 12001:80 -n longhorn-system



   This command forwards port 80 of the longhorn-frontend service to port 12001 on your local machine.

2. Access the Dashboard:

   Open your web browser and navigate to:

   http://localhost:12001

   You should see the Longhorn dashboard, where you can verify the installation and manage your Longhorn storage system.
